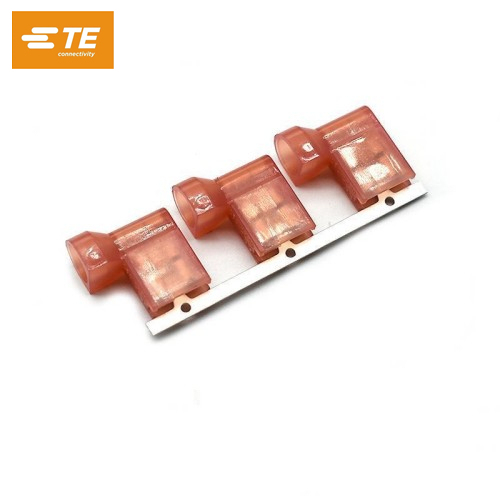

Ultra-Fast Ultra-Fast 250
TE Internal #: 2-520102-2
TE Internal Description: ULTRA-FAST 250 ASSEMBLY TAB 22-18 AWG BR
Alias #: 402646749 BACA-AMP-182 D44822-000 RAYVOSS-UF-TAB-22-18TPBR
Quick Disconnect Terminal Type : Tab
Wire Size (AWG): 22 – 18
Wire Size (mm²): .32 – .82
Mating Tab Width : 6.35 mm [ .25 in ]
Mating Tab Thickness : .81 mm [ .032 in ]
Product Type Features
Configuration Features
Compatible With Wire & Cable Type : Discrete Wire
Connection Capacity : Single
Electrical Characteristics
Voltage Rating (V): 600
Body Features
Insulation Material : Nylon
Contact Features
Quick Disconnect Terminal Type : Tab
Mating Tab Width : 6.35 mm [ .25 in ]
Mating Tab Thickness : .81 mm [ .032 in ]
Terminal Orientation : Straight
Contact Base Material : Brass
Terminal Plating Material : Tin
Crimp Type : F-Crimp
Barrel Type : Closed
Termination Features
Product Terminates To : Wire & Cable
Mechanical Attachment
Mating Retention Type : Dimple
Wire Insulation Support : With
Dimensions
Compatible Insulation Diameter Range : 3.43 mm [ .135 in ]
Product Length : 21.75 mm [ .855 in ]
Terminal Material Thickness : .41 mm [ .016 in ]
Wire Size (AWG): 22 – 18
Wire Size (mm²): .32 – .82
Usage Conditions
Insulation Option : Fully Insulated
Operating Temperature Range : -40 – 110 °C [ -40 – 230 °F ]
Industry Standards
UL Flammability Rating : UL 94V-2
Agency/Standard : UL
Packaging Features
Packaging Quantity : 1400
Packaging Method : Strip/Reel
Other
Barrel Color : Red
